Use the advanced and reliable ST microprocessor control system. Accurate controlled the speed 、time and RCF.
Frequency conversion 、brushless motor without maintenance, control speed 100~15000rpm ± 20rpm;
Centrifuge speed and RCF increase adjustment with 100rpm/100×g,timing control 1-99 minutes or seconds Instantaneous centrifugal, press the(flash)button which can be centrifuged faster.
The master device and the rotor whichi use the high strength material ,it have nice sealing property and high temperature sterilization performance .

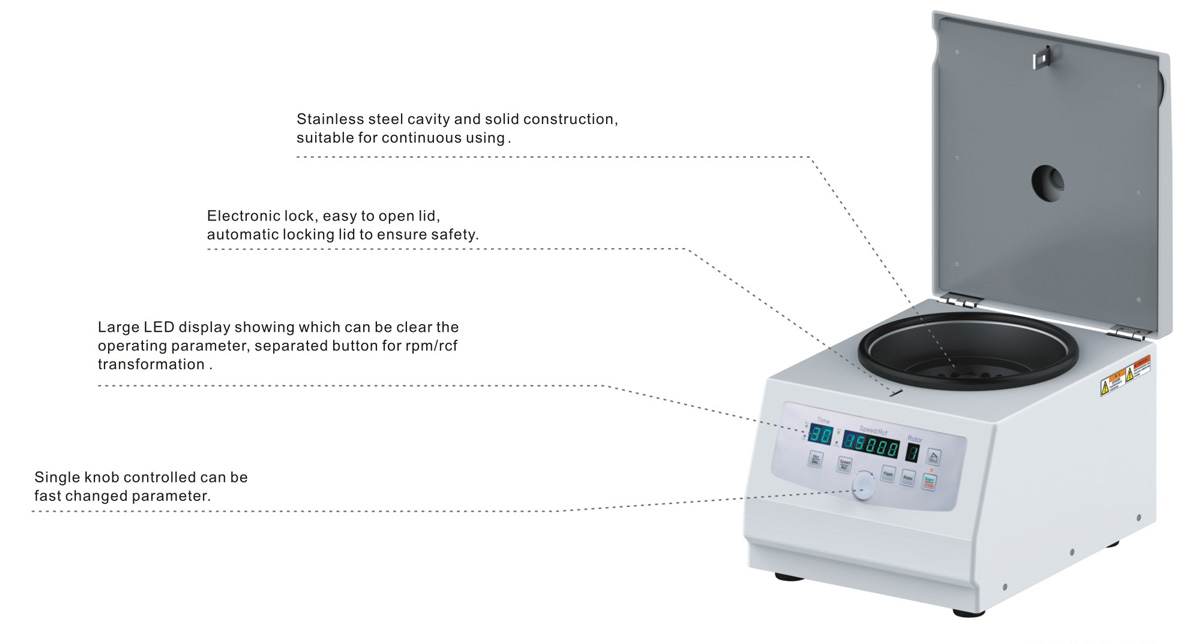

Stainless steel cavity and solid construction, suitable for continuous use, electronic lock, easy to open lid, automatic locking lid to ensure safety.
Large LED display showing which can be clear the operating parameter, separated button for rpm/rcf transformation .
Single knob controlled can be fast changed parameter.
The centrifuge have door cover protection , excessive speed and imbalance detection system, Which can be real-time monitoring , ensure the centrifuge safe operation, when appear the imbalance sound signal reminder and stop operation at the same time ,LED display show the error code .
Automatic opened the cover when finish the operating ,The samples will not overheating and discharge the sample more convenient
The rotor have the sealed cover , it will be prevent the contamination from sample .
Technical data | TC-M15D |
Power supply | AC230V/50~60Hz |
Power consumption drive | 450W |
Max. capacity | 50ml(5ml×10) |
Max. speed rpm (Angle rotor) | 15000 |
Max. RCF[×g] | 20375 |
Interference suppression | EN61326 |
Dimensions:D×W×H | 280×360×250 |
Weight without rotor (Kg) | 17 |
Noise level at max. speed(apprex) | ≤60dB(A) |
Max.Acceleration time | 16s |
Max.Deceleration time | 18s |
(Cat.No) | (Part name and model) | (Specilfication) | |||
(Rotor) | capacity(ml×No.) | Max. RCF(Xg) | Max. speed rpm(r/min) | Tube type | |
8011158 | TC-M15D | Air-cooled tabletop high speed micro-centrifuge | |||
8011158-1 | # 1501 Angle rotor | 1.5/2.2×24 | 20375 | 15000 | PP锥底带盖 |

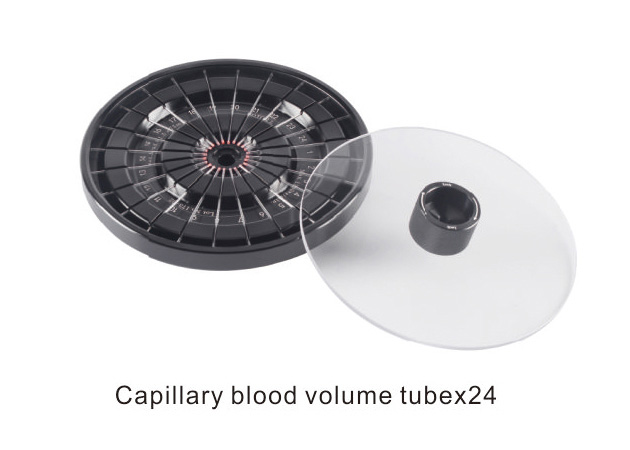

8011158-2 | Capillary blood volume tube | Capillary blood volume tube ×24 | 15300 | 12000 | 直径 1.5mm |

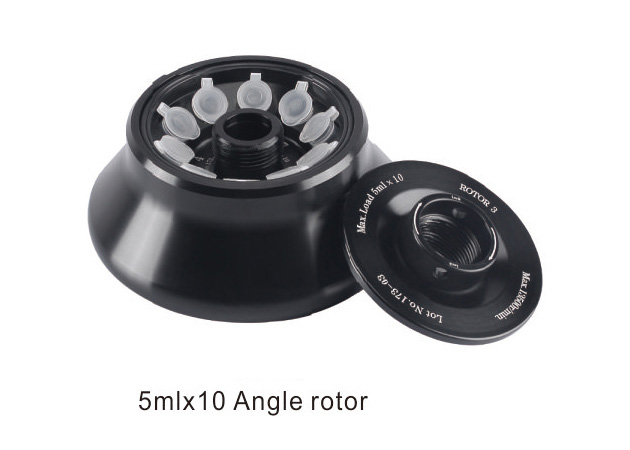

8011158-3 | # 1503 Angle rotor | 5×10 | 12920 | 13500 | PP圆底带盖 |

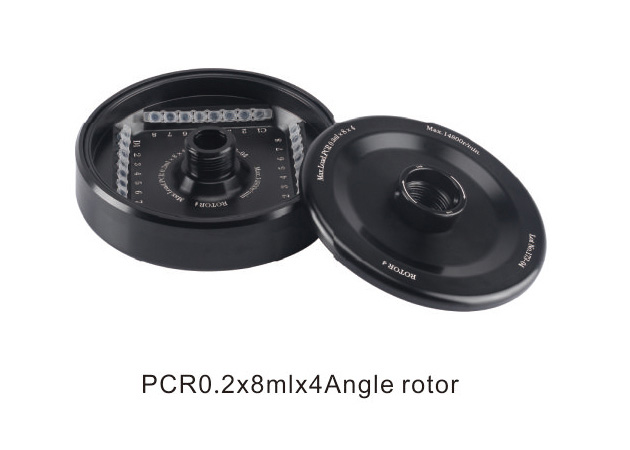

8011158-4 | # 1504 Angle rotor | PCR 0.2×8×4 | 16200 | 14800 | PP锥底带盖 |

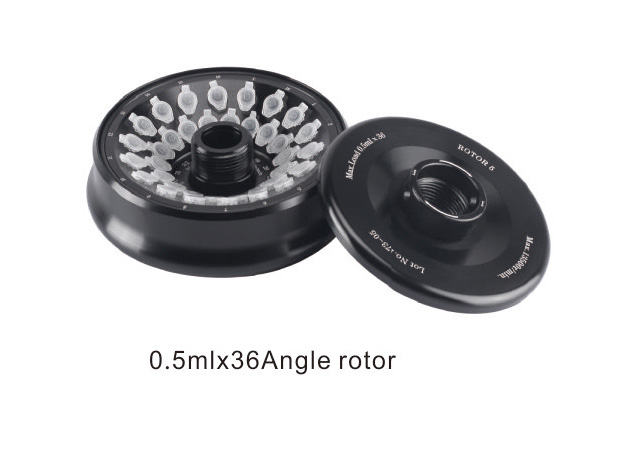

8011158-5 | # 1505 Angle rotor | 0.5×36 | 13250 | 13500 | PP锥底带盖 |
