Nextspin programmable Centrifuge

Nextspin programmable Centrifuge

Nextspin SERIES centrifuge have powerful functionality, high versatility, simple operation etc features. The centrifuge suitable for extraction of medical products. blood bank. clinical trial and of blood serum,lasma,body fluids and biological specimen in biology laboratory, it is more significantly in the genetic, Protein &Nucleic Acid . PCR products field for experimental research.

Feature

  • Safety lid-lock. prevents opening lid until rotor stops

  • DC motor free of maintenance

  • Short spin and timing set spin patterns make it more efficient

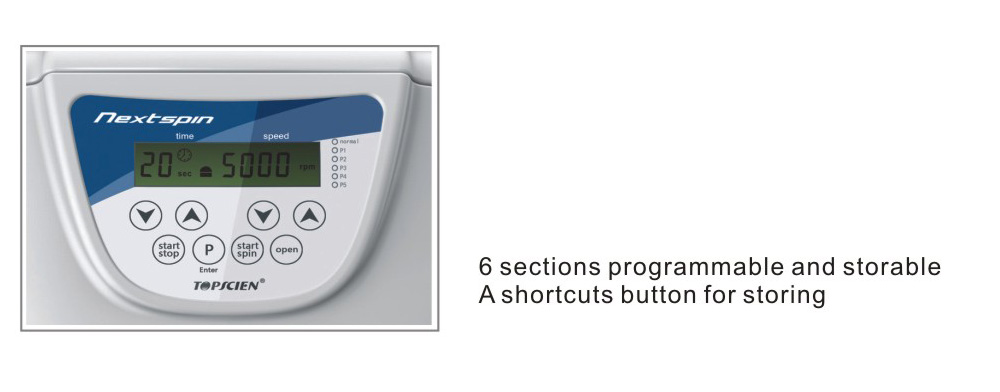

  • LCD Creen dlsplays time and speed,convenient to set and read

  • Use the advance and reliable CPU control system. can be control the RPM. RCF and time accurately.

  • Ventilation cooling system and excellent air heat exchange technology which will be reduced the rotor temperature. ensure the sample undamaged. Sound alert and automatic open the lid after the rotor stops

  • Adjustable speed:l00 - 5000 rpm. Max relative centrifugal force:2850xg High accuracy of speed and time,excellent performance. More samples is dealt at one time with high efficiency.

  • According different kinds requirement with multiple options for selecting different kinds of centrifuge

  • It indude the spacer layer outside chamber for absorbing the noise.reducing the vibration; overspeed. over-current,over-voltage protection and imbalance system ensure the machine operating safety. sound alert after operating or error, the LED display show the corresponding error code



Technical data

Speed Range
increment:100rpm
Max.RCF
2850xg
Max.Sample Capacity

8ml/5ml/3mlx24,50mlx6
Time Range
0~99m,59s
Safety
safety lid-lock,imbalance system
Working Noise
56dB
Acceleration/Deceleration
20s↑20s↓
Power
200W

Order information

Cat.No.
Code.No.
Specification
8011650

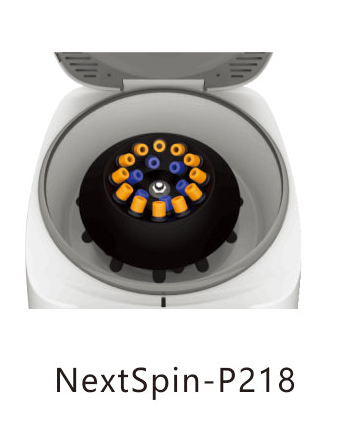

TC-NextSpin-P218
220V 50Hz with 3ml(5ml)(8ml) vacuum tube x18 double row angle rotor Max RCF 2545xg
8011651
TC-NextSpin-P218
110V 60Hz with 3ml(5ml)(8ml) vacuum tube x18 double row angle rotor Max RCF 2545xg
8011652

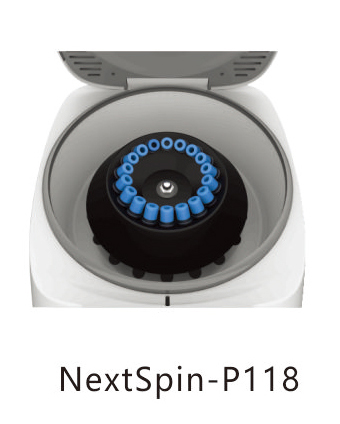

TC-NextSpin-P118
220V 50Hz with 3ml(5ml)(8ml) vacuum tube x18 single row angle rotor Max RCF 2850xg
8011653
TC-NextSpin-P118
110V 60Hz with 3ml(5ml)(8ml) vacuum tube x18 single row angle rotor Max RCF 2850xg
8011654

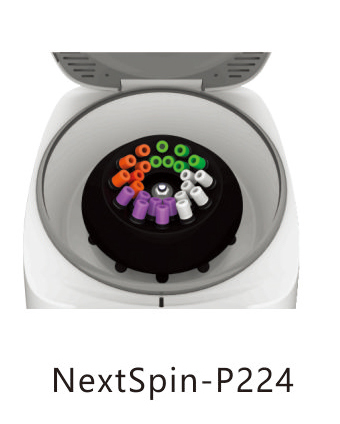

TC-NextSpin-P224
220V 50Hz with 3ml(5ml)(8ml) vacuum tube x24 double row angle rotor Max RCF 2850xg
8011655
TC-NextSpin-P224
110V 60Hz with 3ml(5ml)(8ml) vacuum tube x18 double row angle rotor Max RCF 2850xg
8011656

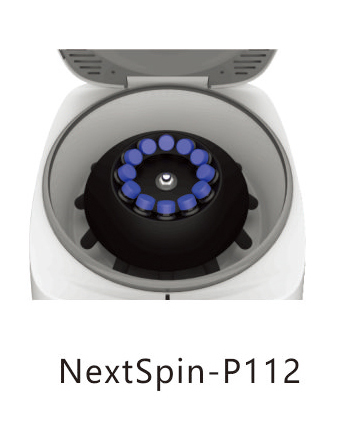

TC-NextSpin-P112
 220V 50Hz with 3ml(5ml)(8ml) vacuum tube or 15ml conical tube x12 rotor Max RCF 2850xg
8011657
TC-NextSpin-P112
 110V 60Hz with 3ml(5ml)(8ml) vacuum tube or 15ml conical tube x12 rotor Max RCF 2850xg
8011658

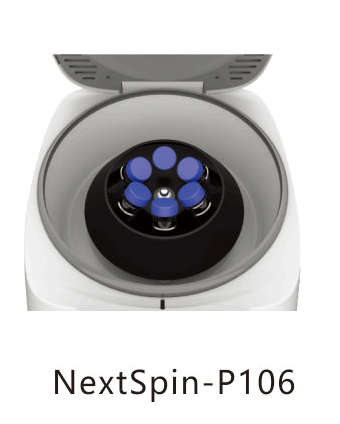

TC-NextSpin-P106
 220V 50Hz with 50ml conical tube x6 angle rotor Max RCF 2740xg
8011659
TC-NextSpin-P106
 110V60Hz with 50ml conical tube x6 angle rotor Max RCF 2740xg
8011660

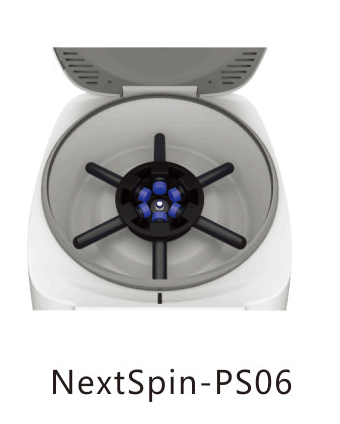

TC-NextSpin-PS06
 220V 50Hz with 3ml(5ml)(8ml) vacuum tube or 15ml conical tube x6 rotor Max RCF 2510xg
8011661
TC-NextSpin-PS06
 110V 60Hz with 3ml(5ml)(8ml) vacuum tube or 15ml conical tube x6 rotor Max RCF2510xg
