  • Product Name: Magic Programmable Mixer
  • Release time: 2024-10-8 16:30:59
  • Company Feature:
  • TOPSCIEN is a leading provider of OEM or Original Equipment Manufacture liquid handling solutions. Thanks to our know-how and experience, we can take care of the whole process from engineering concept to dispatch.We have developed different technologies that can be applied to custom-made pipetting solutions. These include both electronic and mechanical pipette platforms. As a customer you can rest assured: Topscien 's solutions allow you to improve not only the safety and reliability, but also the ease-of-use of your liquid handling system.

    In many applications, such as diagnostic test and analysis systems, the accuracy of the results and reliability of the system are mission-critical. This requires a lot from all components of the system including the pipette. Topscien places great emphasis on the accuracy , precision, safety and user-friendliness of its products. Its application-specific solutions have been carefully manufactured in accordance with international quality standards.

    Custom-made for your needs

    The Start electronic and mechanical pipettes, as well as the new dispenser module families are easy-to-adapt platforms for your liquid handling system. For more specific needs, Topscien offers tailored solutions based on any of its pipettes.

    To learn more about Topscien’s OEM solutions, contact us.wilsonw@topscien.com

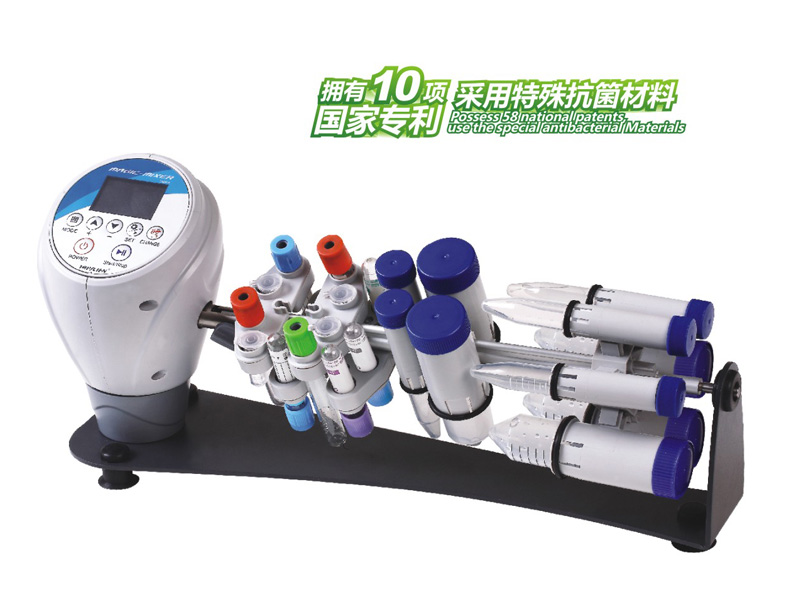

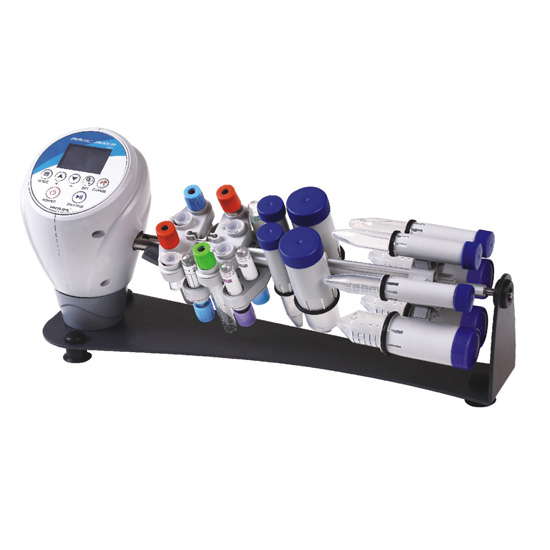

Magic Programmable Mixer

The Magic mixer is a combination of variable speed rotator, advanced multiple tube vortex in one machine , it accept tubes from 0.2ml to 50ml ,all kinds of tube holder can be assembled discretionary in one rack. The mixer can be used in ambient temperatures  from +4 to 65℃ , making it ideal for a variety of laboratory settings such as Molecular Biology ,Biochemistry ,Clinical and Histochemistry . Small enough to fit on a crowded bench .the mixer is easily moved where it is needed the bench . cold room ,incubator or biological hood .

Feature

  • 360° vertical rotating- for larger particles longer wavelength mixing

  • Swinging -for culture medium and larger partic~es medium- longer wavelength mjXing

  • Oscillating- for small particjes short wavelength mixing

Technical Data

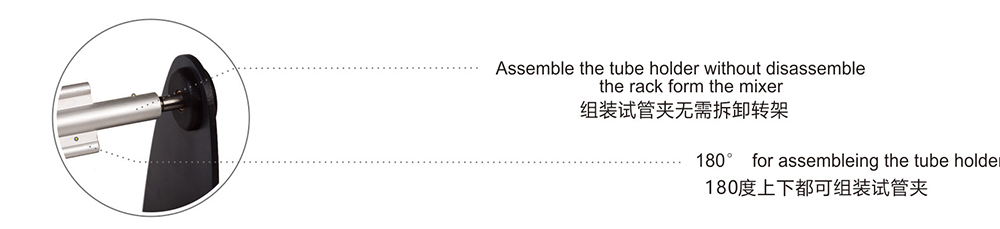

  • Tube holder assemble discretionary

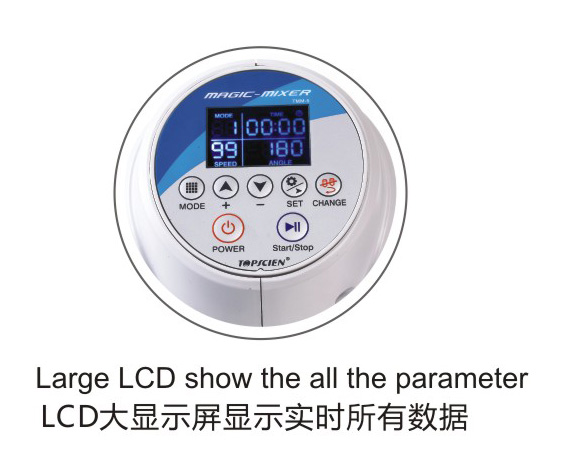

  • Large LCD show the all the parameter

  • 2 sdditional custom programs (6 segments /program) can be created easily 辑)

  • 10 different programs for rotation and mixing

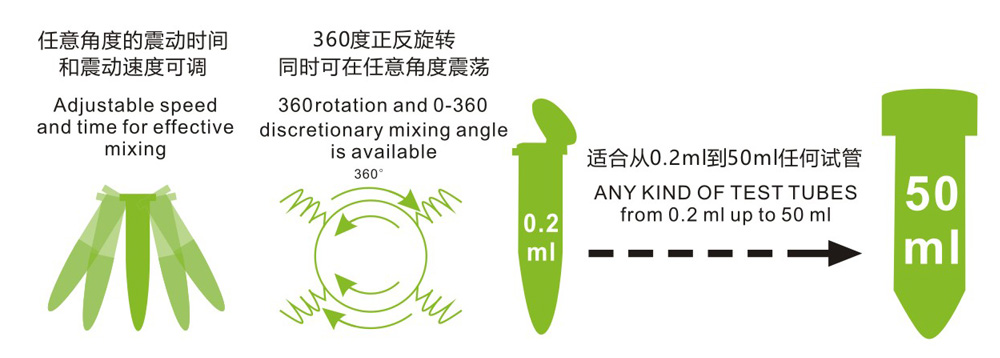

  • 360° rotation and 0-360° discretionary mixing angle is available

  • Adjustable speed and time for effective mixing

  • Accept tubes from 0.2ml to 50ml

  • Cold room and incubator compatible



Specification

Model
FM-MAGIC MIXER
Adaptor
DC12V,1000MA
Rotation speed
1-99RPM
Environment temperature
+4-65°C
Relative air humidity (at 20°C)%
up to 60

Order information

Cat.No
Code No.
Specilfication

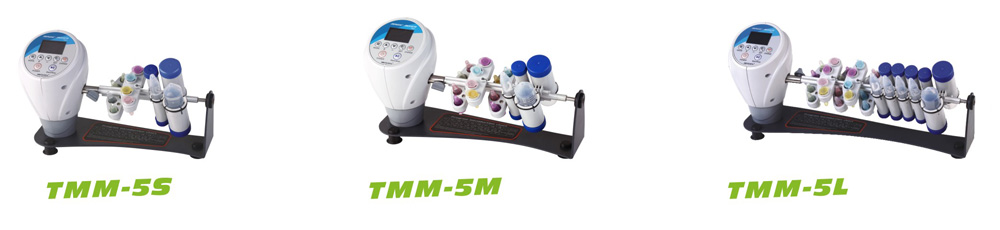

8011252
TMM-5L

                         420mm length Magic Mixer with standard rack
                         (D10-12.5mm tubex20,D16-16.5mm tubex8,D29-29.5mm tubex2)

8011252-1
LH5X36
Rack for diameter 10-12.5mm tubesx36
8011252-2
LH15X22
Rack for diameter16-16.5mm tubesx22
8011252-3
LH50X12
Rack for diameter29-29.5mm tubesx12
8011252-4
LR15X12
Rack for diameter16-16.5mm tubesx12
8011252-5
LR50X12
Rack for diameter29-29.5mm tubesx12
8011253
TMM-5M
344mm length Magic Mixer with standard rack
(D10-12.5mm tubex12,D16-16.5mm tubex2,D29-29.5mm tubex2)
8011253-1
MH5X24
Rack for diameter 10-12.5mm tubesx24
8011253-2
MH15X14
Rack for diameter16-16.5mm tubesx14
8011253-3
MH50X8
Rack for diameter29-29.5mm tubesx8
8011253-4
MR15X6
Rack for diameter16-16.5mm tubesx6
8011253-5
MR50X6
;Rack for diameter29-29.5mm tubesx6
8011254
TMM-5S
<div316mm length Magic Mixer with standard rack
(D10-12.5mm tubex8,D16-16.5mm tubex2,D29-29.5mm tubex2)
8011254-1
SH5X20
Rack for diameter 10-12.5mm tubesx20
8011254-2
SH15X10
Rack for diameter 16-16.5mm tubesx10
8011254-3
SH50X6
Rack for diameter29-29.5mm tubesx6
8011254-4
SR15X6
Rack for diameter 16-16.5mm tubesx6
8011254-5
SR50X6

Rack for diameter29-29.5mm tubesx6

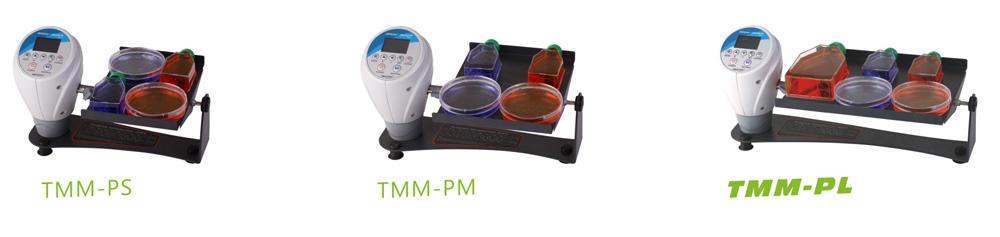

8011255
TMM-PL
Mixer 420x125x168 with Platform(267x154)
8011256
TMM-PM
Mixer 344x125x168 with Platform(169x154)
8011257
TMM-PS
Mixer 316x125x168 with Platform(139x154)
